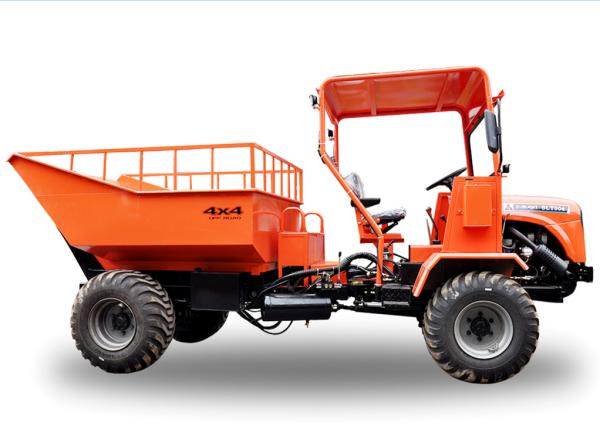

    Articulated Chassis Mini Site Dumper 30HP For Agriculture Construction Mining 4WD

    Ask Lasest Price
    Brand Name : SUNLIGHT
    Model Number : SLT304
    Certification : ISO
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Unit per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Articulated Chassis Mini Site Dumper 30HP For Agriculture Construction Mining 4WD


    Articulated Chassis Mini Site Dumper 30HP For Agriculture Construction Mining 4WD

    Application:

    SUNLIGHT tractor dumper is widely used in China south and west hilly rural area and has been proved it reliability and adaptability .It is labor saving with lower cost and strong power for farm work which dump truck can not accomplish and deliver users with tangible economic benefits.

    It has been proven very useful in construction,oil palm plantation,mining,earth moving etc.


    Parameters:

    NameSNItemSLT-304
    Engine1ModelJD2102
    2StarterElectronic
    3CC1.71L
    4Power22.05KW/30HP
    Gear Box5Model140
    6Shift MothodManual
    7Drive WheelFWD /RWD/4WD
    Dimension8Overall4800 *1900* 2400mm
    9Cargo Tank2150 *1830 *1000mm
    10Distance between shafts2850
    11Whee base1370 /1490mm
    Weight12Machine Weight/
    13Payload2T
    14CabinSimple canopy/1 person
    Transimission Shaft15Speed55km/h
    16Gradeability/
    17Ground Clearance240mm
    18Rear shaft1050
    Plate19Front810-01
    20RearDONGFENG 12C
    Steering21SteeringFull Hydraulic/Articulated body
    Brake System22BrakeAir brake
    23Hand BrakeAir brake
    Hydraulic Cylinder24Hydraulic CylinderSissor Type/Double cylinder
    Tire25Front/Rear400/60-15.5 IMP

    Advantages:

    1. 30 years of tractor manufacture experience

    2. China Famous Brand Gear Ddrive Engine

    3. Full Hydraulic Steering For Easy Drive

    The most widely-sold & comprehensive range of platform tractors and machinery in China

    Gearbox developed by SUNLIGHT is characterized by optional drive models of accurate 4×4 four-wheel drive synchronization(Forward&Reverse),

    2×2 front wheel drive and 2×2 rear wheel drive ,to suit different work conditions.
